TYJ550-II Ring Die Biomass Pellet Mill/Wood Pellet Machine/Sawdustpellet press

TYJ550-II Ring Die Biomass Pellet Mill/Wood Pellet Machine/Sawdustpellet press

  • Min.Order Quantity: 1 Set/Sets
  • Supply Ability: 50 Set/Sets per Month
  • Port: Qingdao
  • Payment Terms: L/C,T/T,Other
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2013-08-29
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  2200*1200*2000mm
  • Place of Origin:  Shandong
  • Brand Name:  TONY
  • Model Number:  TYJ550-II
  • Weight: 6500.000 kg

TYJ550-II Ring Die Biomass Pellet Mill/Wood Pellet Machine/Sawdust pellet press


It is a newly wood pellet mill machine, researched, designed and produced by ourselves. It's mainly used to produce biomass pellets from the materials kinds of wood, waste wood and straws, etc. such as woodchips(palm, pine white pine, mahogany, pinus sylvestris, rubber tree), bamboo shavings, rice hust, seeds shells, peanut shells, halm, pennisetum, wheat straw, corn stalk, cotton stalks, alfalfa grass, bagrass, palm fiber, waste paper, non-physical material.


Features of  Vertical Ring Die wood pellet mill machine

Self -lubrication system

A. Automatic lubricatin system for spindle

B. Automatic lubricatin system for rollers: it can keep the pellet machine in maintenance for 24hours.

Output of pellet mill machine: Our machine can reach the expected output in our technical parameter.

Working  Life of spare parts: Working life of our dies is 2500-3000 hours, much longer than others’.

Number of Our Ring Die holes: Our ring die has 5 rows of holes, much more than others’.

Driving Method of pellet machine: Our machine is drived by gear,not reduction box; Gear driving is helpful to increase the usage life of gear, so the maintenance rata of gear is much lower.

Forged Main Shaft: Our main shaft is forged, not casted. As well known, there is no air bubble in forging process, so it is hard to be broken.

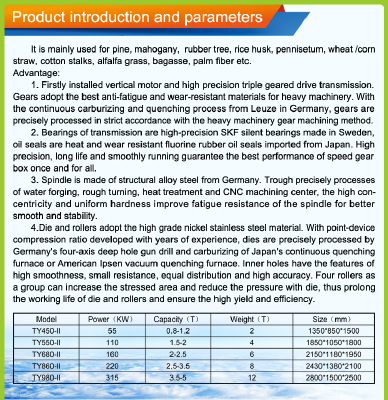

Technical Data of Biomass Wood pellet mill machine



Model

Power(KW)

Capacity(T)

Weight(T)

Size(mm)

Remark

TYJ450-II

55

0.8-1.2

2

1350*850*1500

Gear Transmission

TYJ550-II

110

1.5-2

4

1850*1050*1800

TYJ680-II

160

2-2.5

6

2150*1180*1950

TYJ860-II

220

2.5-3.5

8

2430*1380*2100

TYJ980-II

315

3.5-5

12

2800*1500*2500

Requirements for raw materials

SizeLess than 5mm  (All the raw materials must be crushed into sawdust before going

to wood pellet machine.If not, you may need a wood chipper, wood crusher.)

Moisture: Generally, 10-15%  is best for producing good quality wood pellet.

Characteristic Vertical Ring Die wood pellet press machine

1

Rollers

Be made of alloy steel and stainless steel with longer service time

2

Ring Die

Double layers with longer service time
Be made of alloy steel and stainless steel with professional heat treatment technology.

3

Main Shaft

Be forged three times by traditional handcraft to reach best toughness and hardness, not easy to broken.

4

Vertical motor

working vertically; Mounting hole is centered with shaft and equally distributed, offering more power and working stability for the pellet machine.

5

Driving method

 drived by gear,not reduction box; Gear driving is helpful to increase the usage life of gear, so the maintenance rata of gear is much lower.

6

Working method

pressing from the inside to outside, centrifugal force with eatrusion

7

Automatic lubrication

A.Spindle automatic lubricatin system
B.Roller automatic lubricatin system :it can keep the pellet machine in maintenance for 24hours

8

 Vertical feeding, directly in place; Die is static, rollers rotary































Tony Main Products and More Information about Pelletizing Process

 1.The SKJ Series flat die pellet mill with the volume 100kg per hour to 4 ton per hour.
3.The
SKJD Series Pellet Mill with Diesel Engine with the volume 100kg per hour to 400kg per hour.
4.
The SKJT Series Pellet Mill with Tractor Engine with the volume 80kg per hour to 400kg per hour.
5.Hammer Mill
6.Wood crusher
7.Wood chipper
8.Drum dryer
9.Packing machine
10.
Whole pellet making production line from the volume 0.5 ton per hour to 20 ton per hour.

Why Choose TONY

  TONY MADE MACHINERY  CO.,LTD  is a professional manufacturer and exporter engaged in the research,  production, sale and service of Biomass wood pellet line, wood pellet mill(flat die low temperature pellet mill, vertical ring die pellet mill,),feed pellet mill, grinding equipment, crushing equipment, drying equipment, cooler and other screening, conveying equipment.

Best quotation for your with the following information in your inquiry

1. What's the capacity you want?

2. What's the raw material?

3. What's the size of the raw material?

4. What's the moisture content?

5. What's the final pellet size you want?

6. Automatic packing or manual packing needed?

7. What's your country voltage?



For more information on our pellet machines or ordering inquiries, please contact.

Contact Us

 MS. Amy Zhang

   Skype: tonypelletmill_01

   QQ: 2975663765

   Mobile: 0086-15853148288

   Whatsapp/Line 8615853148288

   Email: pelletmill01 at tonyjixie.com

-----------------------------------------------------------------------------------------------------------------------------------------
